What Long Arm Suspension Actually Changes

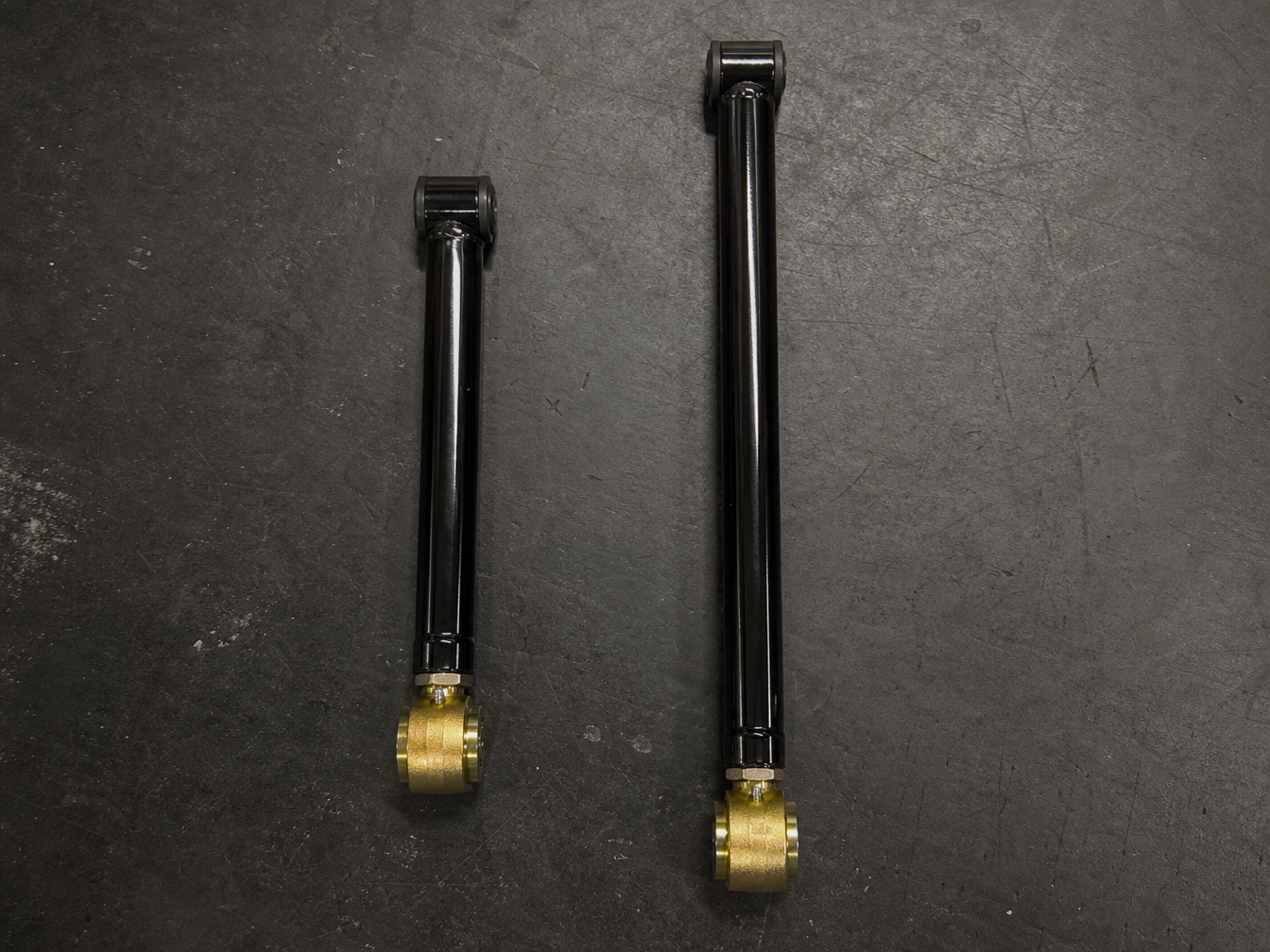

Short arm suspension — factory or aftermarket — is constrained by the length of the stock control arm mounting points. When you lift a Wrangler on short arms, the solid front axle swings through a tighter arc under compression and droop. Pinion angles swing harder through the stroke, caster loses correction at ride height, and the ride gets busy at speed. A long arm system moves the chassis-side pickup rearward and uses longer control arms to flatten that arc. On a solid axle Jeep, where every geometry variable runs through that axle, flattening the arc changes everything.
The result is not just more lift. It is a fundamentally different geometry. Pinion angle change across the full range of travel drops dramatically, which protects the driveline and smooths power delivery on the trail. Caster holds correct at lifted ride height without aggressive ball joint adjusters. The Wrangler stops pitching and hunting on washboard. Front-end bump steer on rough Hill Country two-track quiets down. This is the reason long arm exists — and it is the reason the owner who has driven both will never go back.
If you are chasing a number on a tape measure, short arm kits get you there. If you are chasing how the Wrangler feels at 45 mph across rough Big Bend two-track, through rock gardens at crawl speed, and on I-10 back to Houston afterward — that is a long arm conversation.
Long Arm vs Short Arm — When The Conversation Changes
Short arm kits are the right answer for the majority of Jeep builds we quote. They are less invasive, less expensive, cleaner to install, and perform exceptionally well for weekend trail use, moderate off-road, and the daily-driven Wrangler that sees Barnwell Mountain on Saturdays and a Houston commute during the week. A well-chosen short arm kit on a properly matched tire and wheel combination is not a compromise — it is the right tool for that build.
The long arm conversation starts when the scope of use changes. If you are running 37-inch tires or larger, covering ground at speed in West Texas or the New Mexico desert, running rough high-speed two-track in Big Bend or the Hill Country, or building a Wrangler that needs to perform at a high level across a wide band of terrain without compromise — that is when long arm earns its cost. At that tire size and that usage, the geometry benefits of long arm stop being academic and start being the difference between a Jeep that works and a Jeep that beats you up.
Short Arm Is The Right Call When
The Wrangler is primarily daily-driven. Tire size is 35s or smaller. Trail use is weekend and moderate — Barnwell, Rocky Hill Ranch, East Texas forest roads. Budget and build scope favor a cleaner, less invasive install. You are not chasing high-speed desert performance.
Long Arm Is The Right Call When
Tire size is 37s or larger. Terrain includes high-speed rough two-track or serious rock. The Wrangler needs to perform across a wide range of terrain without geometry compromise. You have driven a properly built long arm rig and understood the difference immediately.
We will tell you in the consultation which side of that line your Wrangler sits on. Not every Jeep needs long arm — and we are not in the business of selling a system that is not the right answer. That honesty is why long arm customers drive to us from Katy, The Woodlands, Spring, Conroe, Pearland, and all the way from Galveston.
Radius Arms vs Four Link Systems
Not all long arm systems are built the same way. The architecture matters — and the right architecture depends on the Jeep platform, the tire size, the terrain, and the goals for the build.
Radius Arm Long Arm
The cleaner upgrade path for the Wrangler that started life as a trail rig and is being built further. Retains the factory front axle mounting philosophy and uses longer, repositioned arms to correct geometry at lift height. Excellent at 4 to 6 inches on a JK or JL with proper correction — the right call for the daily-driven Wrangler that trails seriously, without the fabrication scope of a full four-link conversion.
Four Link Long Arm

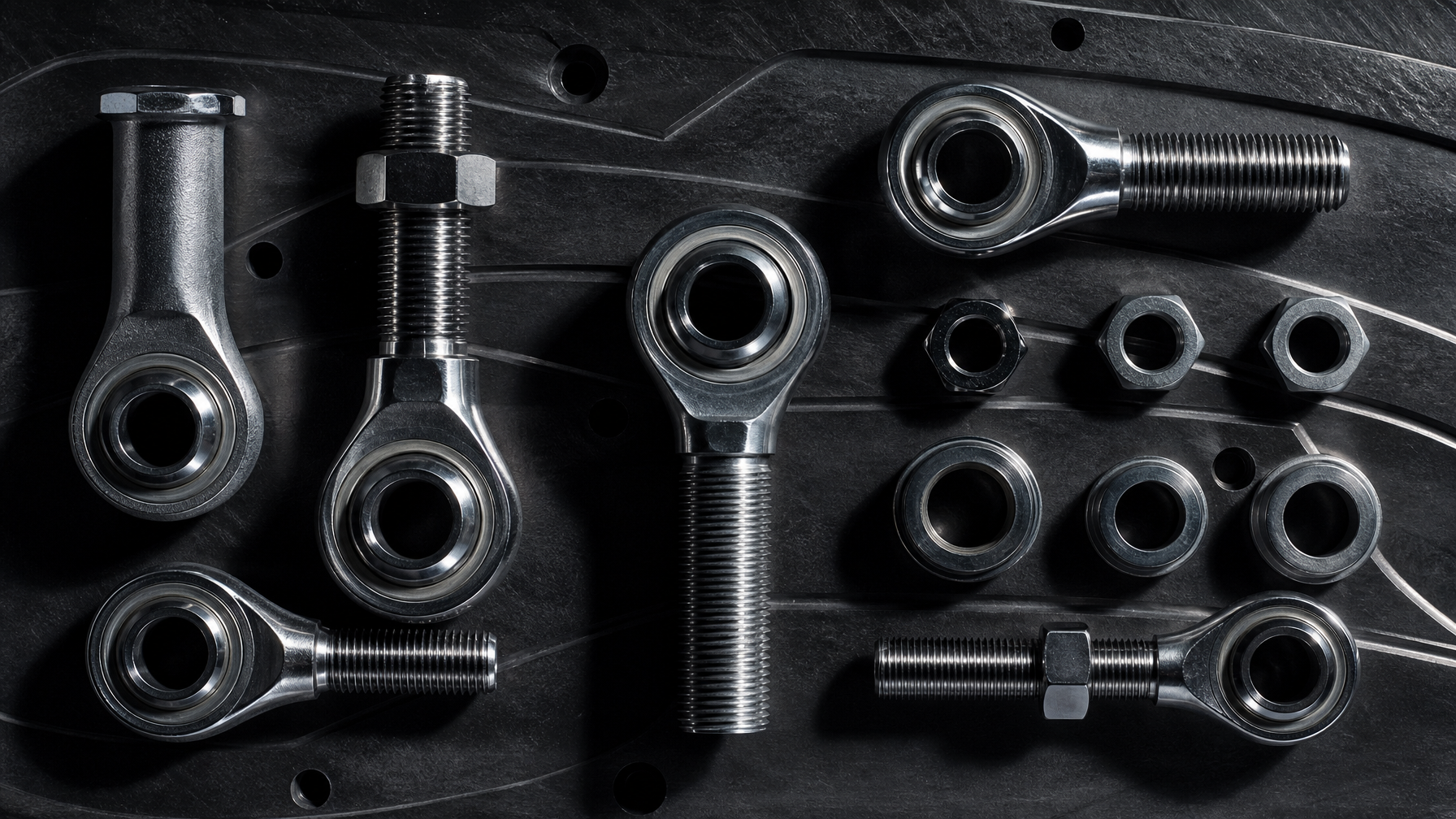

Replaces the entire front or rear suspension geometry with a purpose-built triangulated or parallel four link. Maximum articulation. Fully tunable — anti-squat, roll axis, and instant center are all design variables rather than factory constraints. The right call for the dedicated trail Wrangler or Gladiator running 40s and true rock work, where every geometry variable needs to be on the table.
On a Jeep Wrangler JK or JL we quote both — radius arm for the daily-driven trail rig at 4 to 6 inches, four link for the dedicated build running 40s and serious rock. On a Gladiator JT we typically start with radius arm long arm on the rear given the truck's payload function and evaluate front four-link on a case-by-case basis. On custom fabrication builds, four link is on the table from the first conversation. We do not sell one architecture because it is the one we carry. We sell the one that matches the Jeep and the mission.

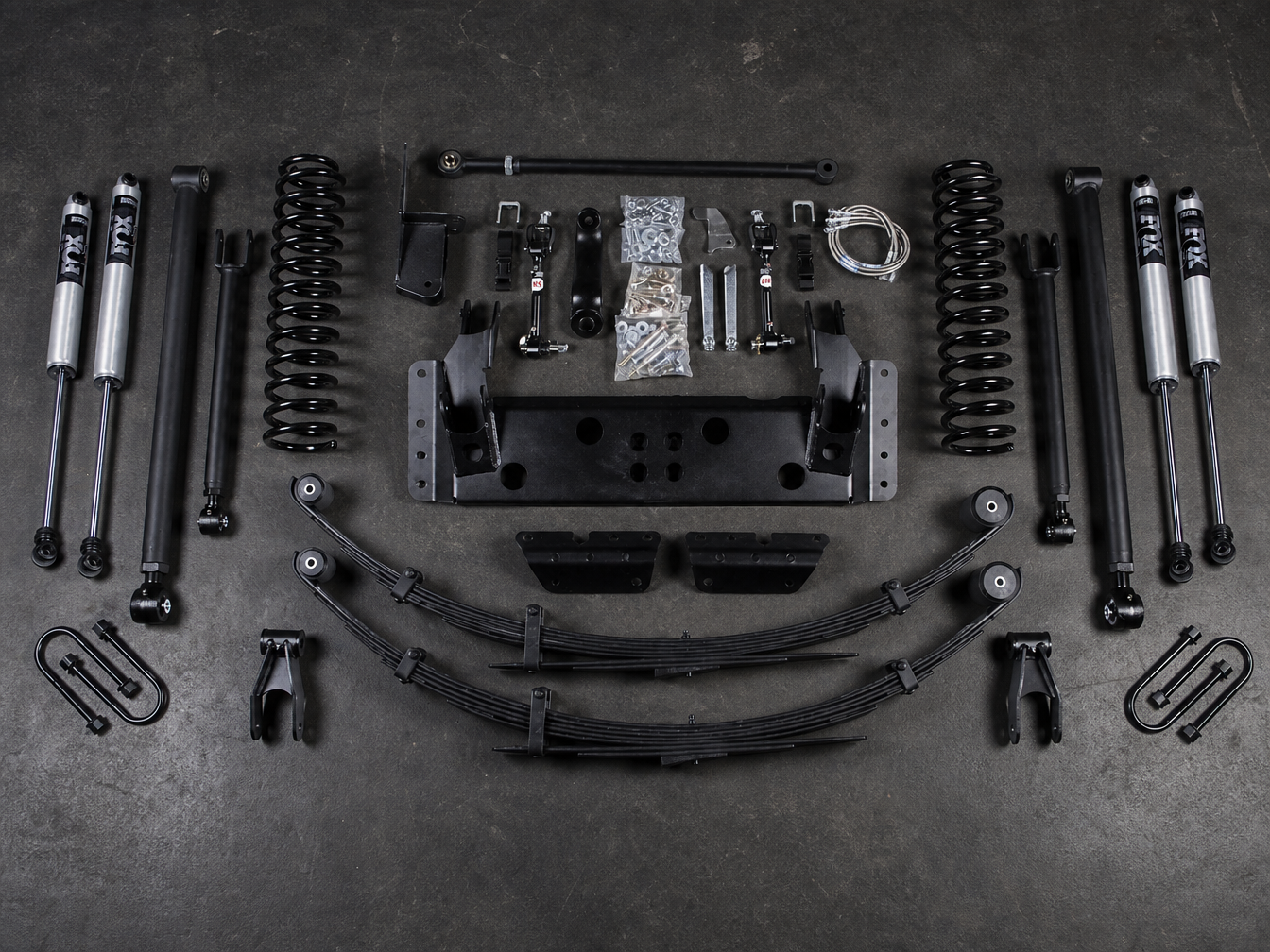

What The Install Actually Involves

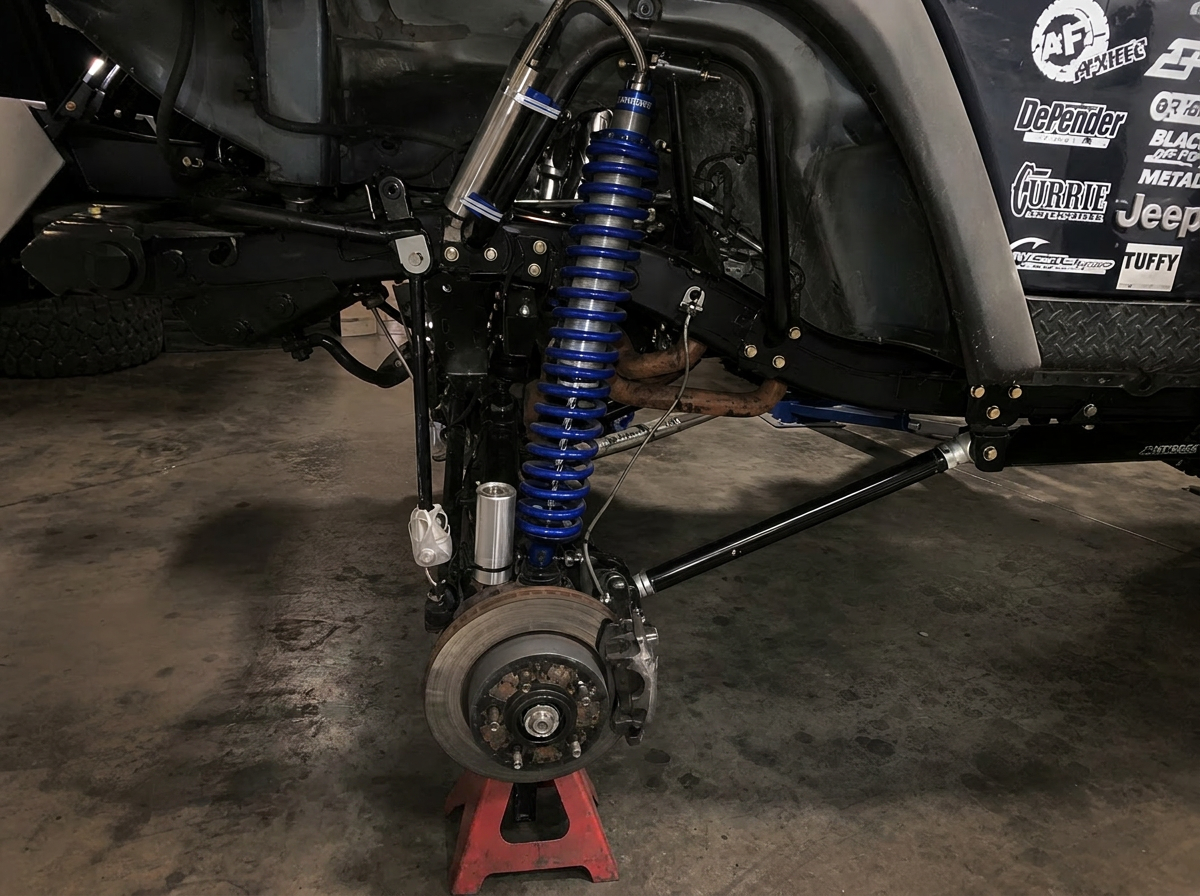

Long arm suspension on a Wrangler is not a bolt-on afternoon project — and anyone who tells you otherwise has not done one correctly on a JK or JL. Moving the control arm pickup points rearward means the frame rails get clearanced. Skid plates get modified or replaced to clear the new crossmember. Driveshafts get addressed — front shaft length, rear shaft angle, and CV joint working angle all change. Alignment specs change because caster and camber now live at different geometry. Brake lines and hoses need to be evaluated for the new range of motion at full droop. Track bar geometry has to be corrected or the front axle shifts under articulation. On a JL Wrangler or Gladiator JT, ADAS systems require recalibration at the new ride height — a step that applies to every JL geometry change regardless of scope.
We treat a long arm install as a system build, not a parts swap. Every downstream component affected by the geometry change gets evaluated before the Wrangler leaves the shop. That is why a long arm install on the quote looks different from a short arm install — because the work is different. We would rather show you the full scope on paper before the Jeep comes in than surprise you with it halfway through the build.
- Frame rail clearancing where the platform requires it — measured, reinforced, and finished properly
- Skid plate and crossmember modification or replacement to clear the new arm geometry
- Driveshaft evaluation — length, angle, CV working angle, and high-angle U-joint specification if required
- Brake line and ABS line length check at full articulation — extended or re-routed as needed
- Track bar, panhard bar, and steering geometry correction for the new ride height
- Alignment performed at full build ride height with corrected specs — not factory specs
- Bumpstop geometry verified so the suspension does not contact itself at full compression
- JL Wrangler and Gladiator JT: ADAS recalibration at new ride height — included in every JL and JT long arm quote
Lift Height and Tire Fitment
Most bolt-in long arm systems from quality manufacturers support 4 to 6 inches of lift at the entry level. Purpose-built and custom-fabricated systems can go further — 8 inches and beyond on the right Wrangler or Gladiator with the right plan — but the conversation stops being about catalog kits and starts being about design at that point.
The tire fitment conversation with long arm is where the system earns its keep. If you are running 37-inch tires on a Jeep JL or JK, a 4 to 6 inch long arm system with the right wheel backspacing, fender work, and bump stop tuning will carry that tire with proper geometry at full articulation. Go to 40s and four-link builds come onto the table. A Wrangler running 37s or 40s on a properly spec'd long arm system settles down in a way a short arm kit at the same lift simply cannot match at speed.
We do not force tires to fit on a suspension that was not designed for them. The suspension comes first, the tire size follows the suspension, and the geometry gets the final word. That is how a properly built long arm Wrangler ends up running 37s to 40s without destroying ball joints, eating tires at the edges, chattering steering components, or punishing the driver on the way home to Houston.
- Jeep Wrangler JK — 4" to 6" bolt-in long arm, 37s to 40s achievable with proper fitment and geometry correction
- Jeep Wrangler JL — 4" to 6" long arm, ADAS recalibration standard, 37s to 40s with full system build
- Jeep Gladiator JT — long arm rear conversion for load and articulation, 37s to 40s with correct geometry
- Custom Jeep platforms — full four link fabrication builds, lift and tire size engineered from the chassis up
